A gravity separation equipment that uses the inertial centrifugal force generated by the slurry in the spiral rotation motion to achieve the separation of light and heavy minerals.Stable, easy to cont...

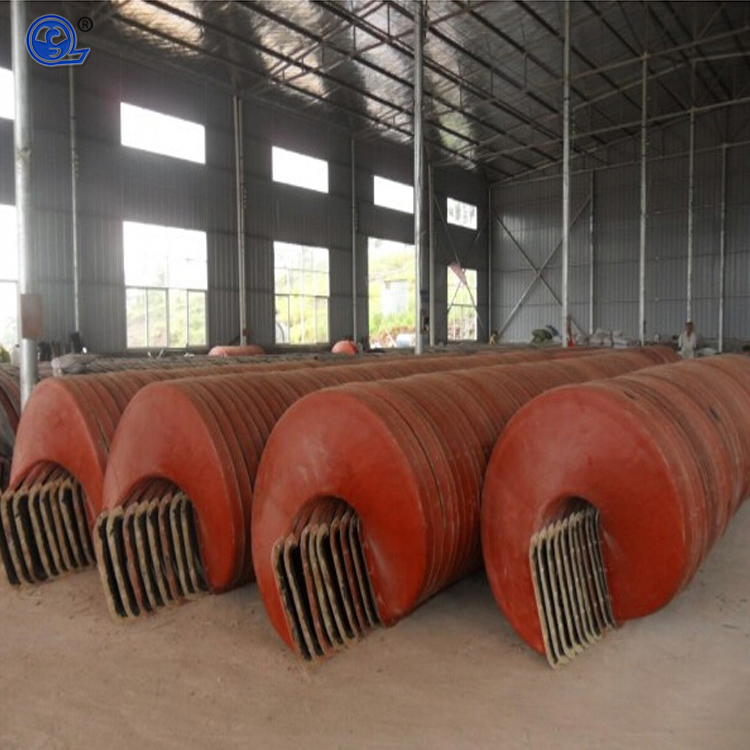

Spiral Chute Overview
The spiral separator/ spiral chute is the earliest mining machine. It has been used to classify the granularity of 0.3-0.02 millimeters fine grain like iron, tin, tungsten, tantalum-niobium, gold ore, coal mine, monazite, rutile, zircon, and other metals. The non-metallic minerals have a big enough specific gravity difference.

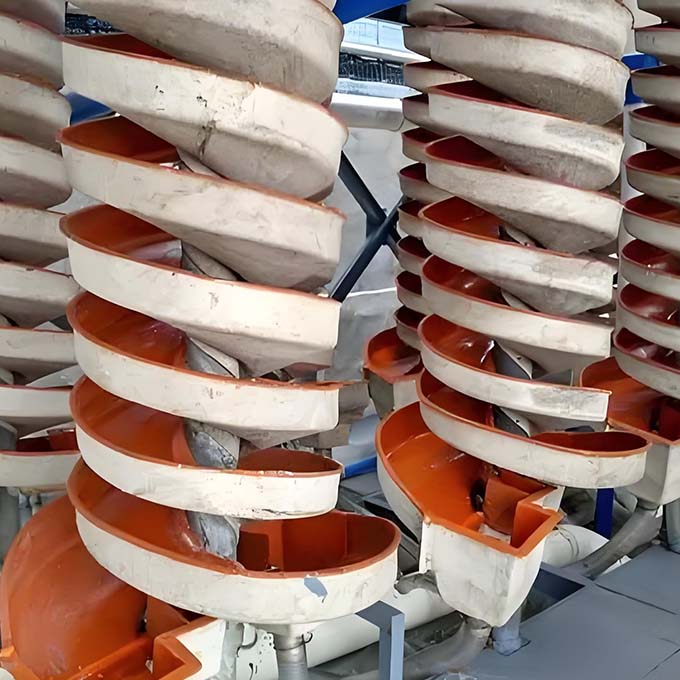

Spiral chutes are gravity concentrators and separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force, and other forces in the fluid medium. The spiral separator is the best equipment for mining and mineral processing, which combines the characteristics of the spiral concentrator, shaking table, and centrifugal concentrator. It is made of the fiberglass lined with wear-resistant polyurethane and corundum cover, light moisture-proof, anti-rust.
Structure&Working Principle

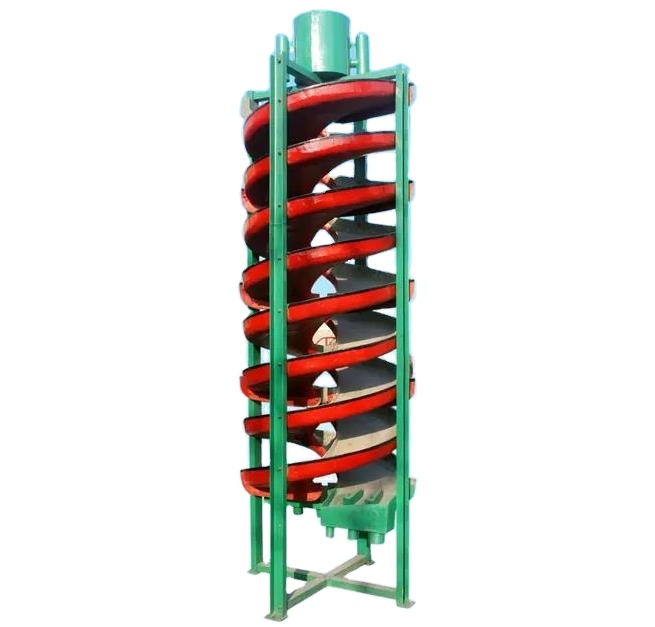

Spiral Chute Structure

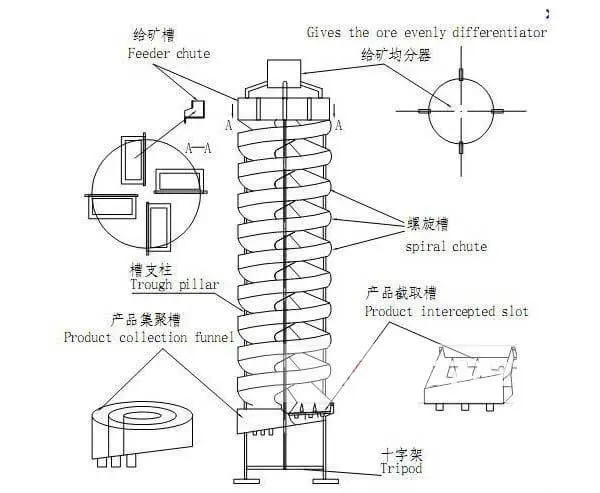

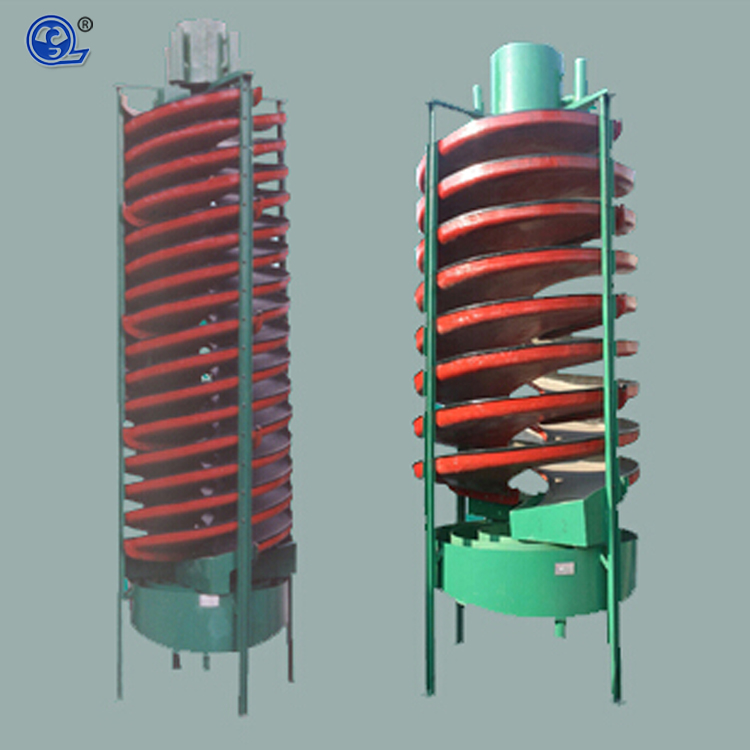

The main parts of a spiral chute are feeder chute, trough pillar, product collection funnel, product intercepted slot, spiral chute, tripod, etc.,

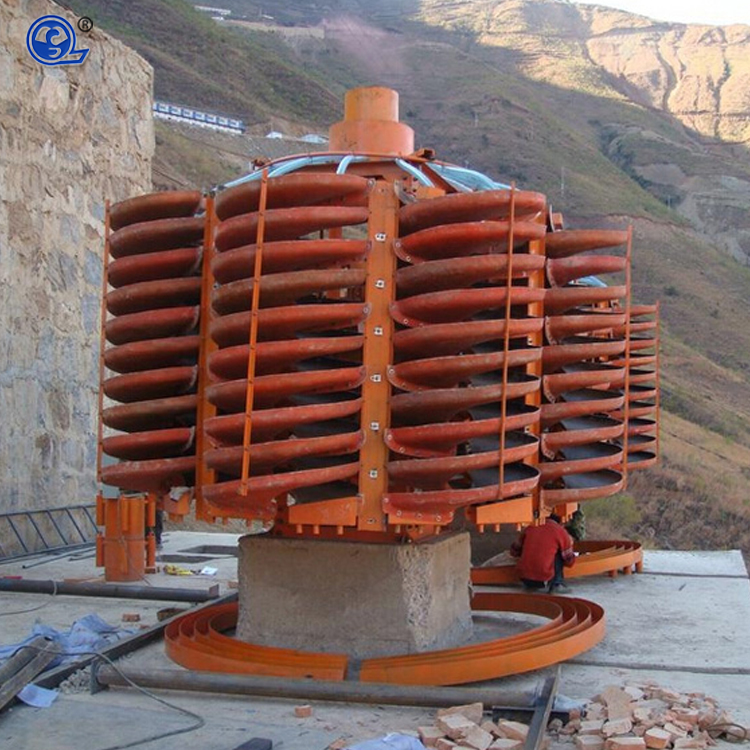

Specification
Model 5LL-2000 5LL-1500 5LL-1200 5LL-900 5LL-600 5LL-400 Outside Dia (mm) 2000 1500 1200 900 600 400 Pitch (mm) 1200 900,675 900, 720, 540 675, 540, 405 450, 360, 270 240, 180 Pitch Dia Ratio 0.6 0.48, 0.36 0.75, 0.6, 0.45 0.75, 0.6, 0.45 0.75, 0.6, 0.45 0.6, 0.45 Lateral Slope 9° 9° 9° 9° 9° 9° Number of Installed Spiral Heads 2 2-4 2-4 2-4 2 2 Feeding Size (mm) 2-0.04 2-0.04 2-0.04 2-0.04 2-0.04 2-0.04 Feeding Density(%) 30-55 30-55 25-55 25-55 25-55 25-55 Capacity (T/H) 7-10 3-5 3-4 2-3 0.8-1.2 0.15-0.2 Size Length (mm) 2120 1600 1360 1060 700 460 Width (mm) 2120 1600 1360 1060 700 460 Height (mm) 5600 5300 5230 4000 2600 1500 Weight (Kg) 1200 800 600 400 150 50
