Double Deck Gold Shaker Table

Chat Online on WhatsApp

Consultation

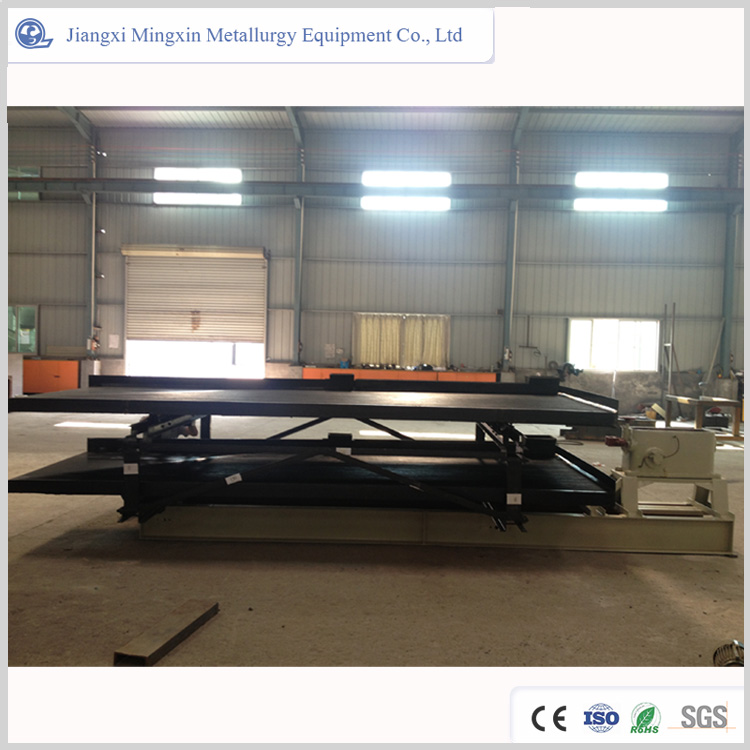

Double Deck Gold Shaker Table

Details

Overview

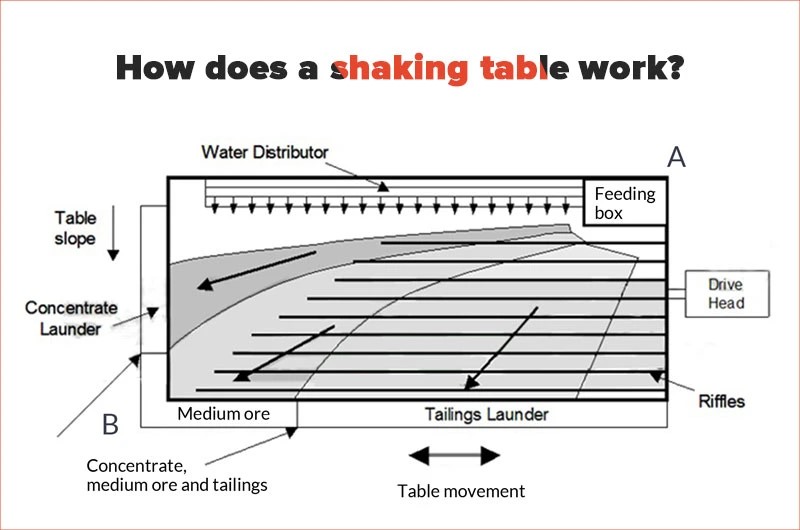

Double decks Shaking table is a mine selecting machine for fine materials working by gravity. It is widely used in selection of chrome, tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal,etc.

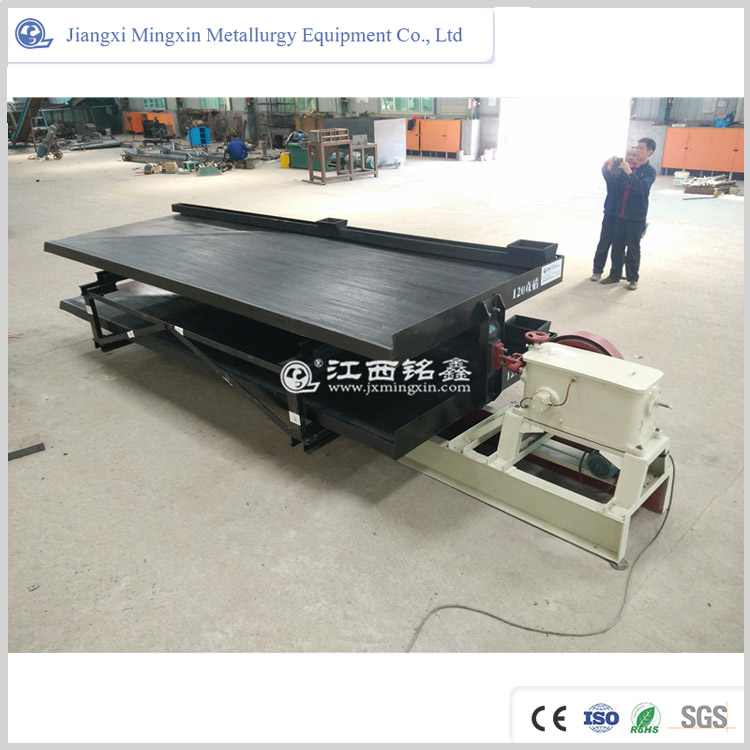

The double deck gold shaker table is an innovative product of the traditional single deck shaker. It covers small area, large processing capacity, energy-saving, relatively low equipment cost, high rich ore ratio, high efficiency, easy to adjust the stroke. The balance of the bed surface can be maintained while changing the lateral slope and stroke. The spring is placed in the table body, the final concentrate and final tailings can be obtained at one time.

Structure

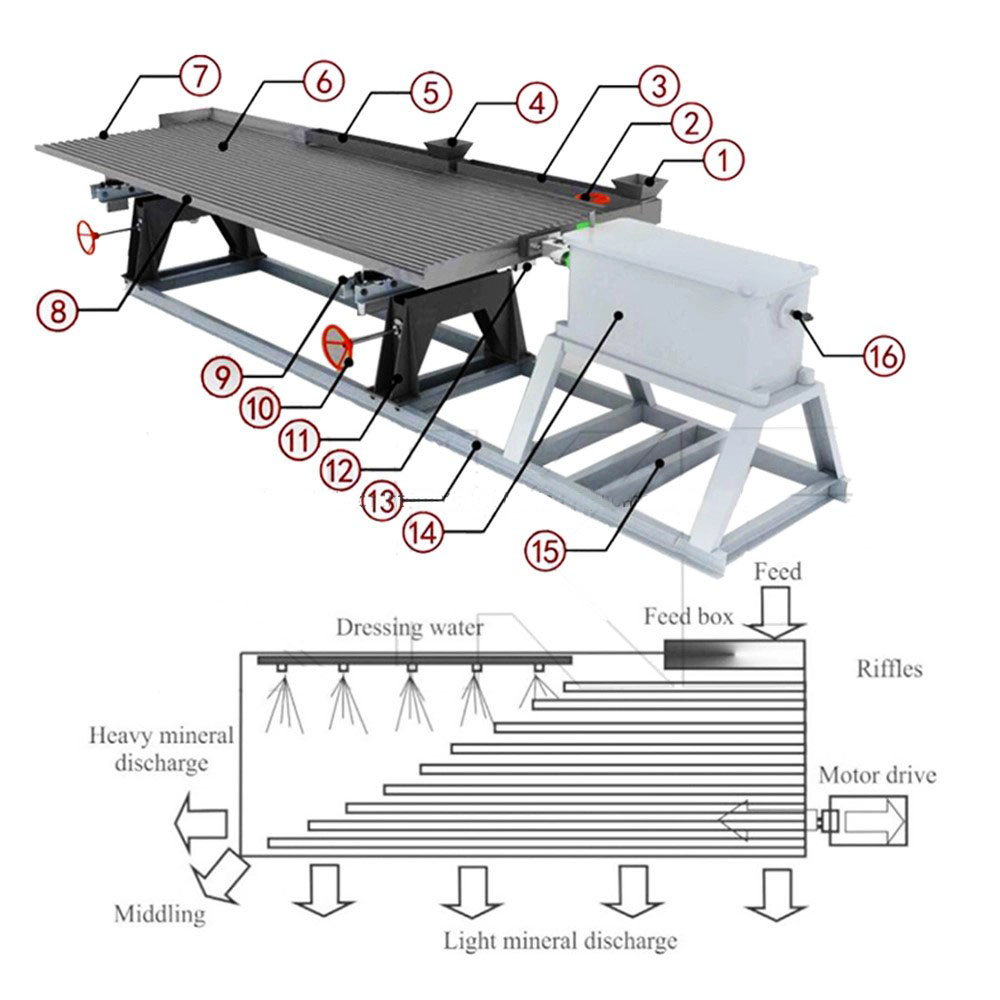

Double-deck Shaking table mainly including the head transmission case, electric motor, the slope, the surface of bed, the ore trough box, the water trough box, the lubrication system,etc; total eight main parts are composed.

Traditional shaker table covers large area, and low single unit processing capacity, customer investment increases, double-deck shaker table covers a small area, while could treat a large amount of feeding material, also in lower cost.

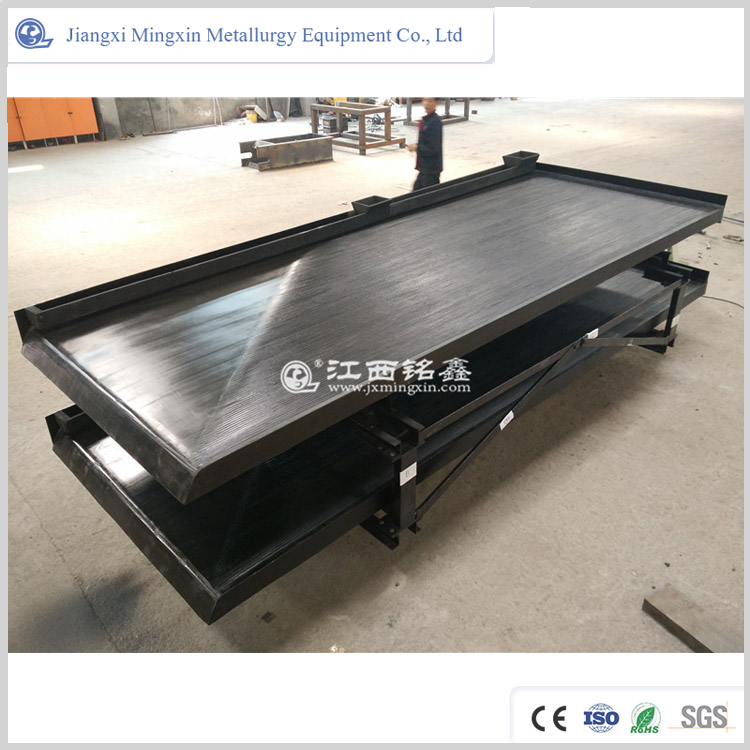

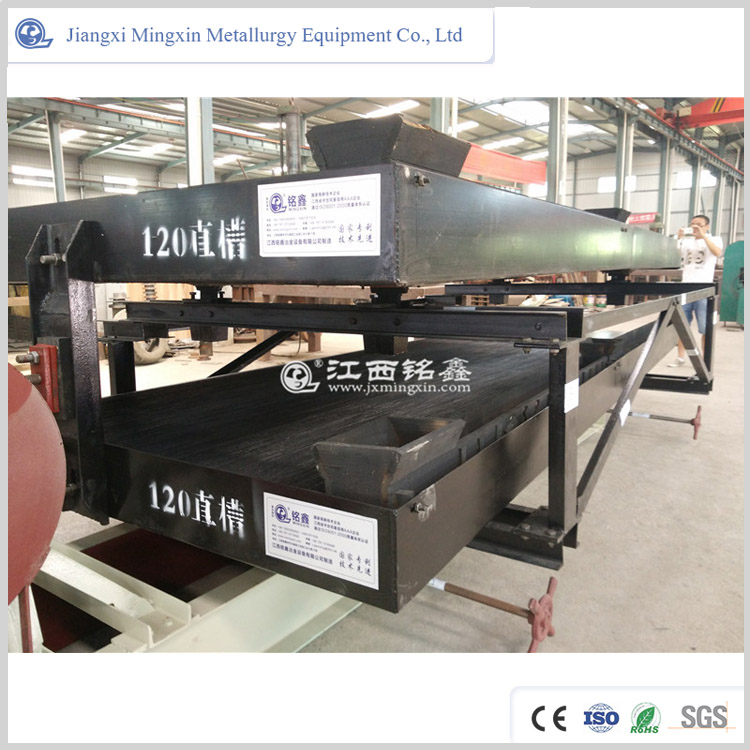

The 6-S double-layer shaker adopts the same form base as the 6-S large channel steel bracket shaker. The two base feet are placed on the large channel steel base, and the welded channel steel bracket is raised on the large channel steel plate for placing the shaking head. The shaker surface adopts the same bed surface with the same size as the original bed surface on the 6-S single-layer shaker bed surface, and the upper and lower layers are supported by steel plates.

The spacing between them is 400 mm and the free space is about 300 mm.

The bed is still equipped with a double crank rocker mechanism. The spring box is outside the rocking box, and the crankshaft, tie rod, spring, rocker, and other components are correspondingly enlarged in size, and the material is more standardized.

Specification

Deck type		Unit	Course sand	Fine sand	Slime Deck	Three different kinds of decks are available
Beneficiation Area		m2	7.6	7.6	7.6	4.08	1.95	0.5
Deck Size	Length	mm	4450	4450	4450	3000	2100	1100
	transmission end width	mm	1855	1855	1855	1320	1050	500
	Concentrate end width	mm	1546	1546	1546	1100	850	430
Maximum Feeding Size		mm	2	0.5	0.15	0.1-2	0.074-2	0.074-2
Process Capacity		t/h	1.5-2	0.8-1.5	0.5-0.8	0.4-1.5	0.3-0.8	0.05-0.2
Feeding Density		%	25-30	20-25	15-25	10-30
Stroke		mm	16-22	11-16	8-16	6-30	12-28	9-17
Frequency		f	45-48	18-53	50-57	210-320	250-450	280-460
Water added		t/d	80-150	30-60	10-17	0.3-1.5t/h	0.2-1t/h	0.1-0.5t/h
Transverse slope of Deck		°	2° 30-4° 30	1° 30-3° 30	1° -2°	0 -10°	0 -8°	0 -10°
Longitudinal slope of Deck		°	1.4	1.4	0.92	——	——	——
Cross-section Shape of Deck			rectangular	saw tooth	triangle	Avaliable rectangular, saw tooth, triangle
Motor Power		KW	1.1	1.1	1.1	1.1	1.1	1.1
