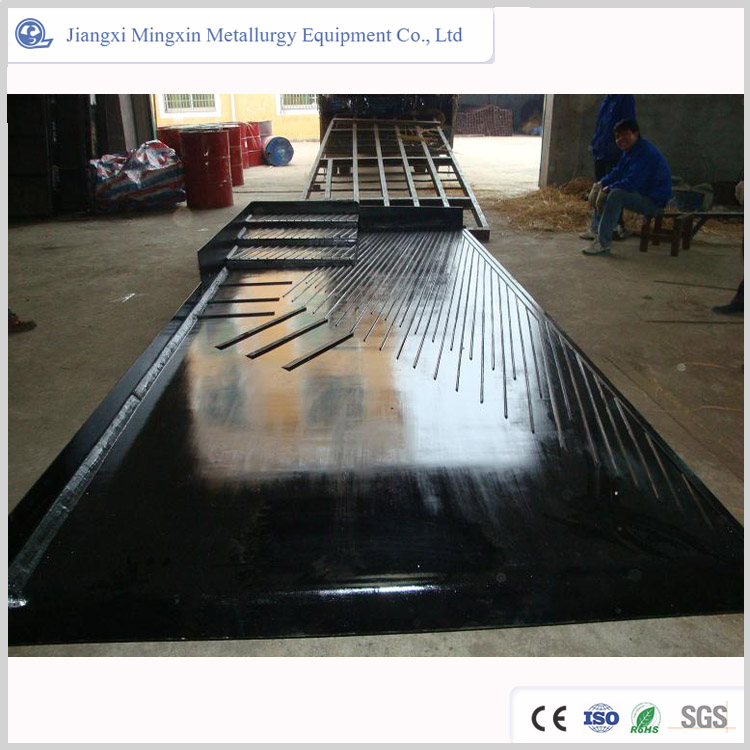

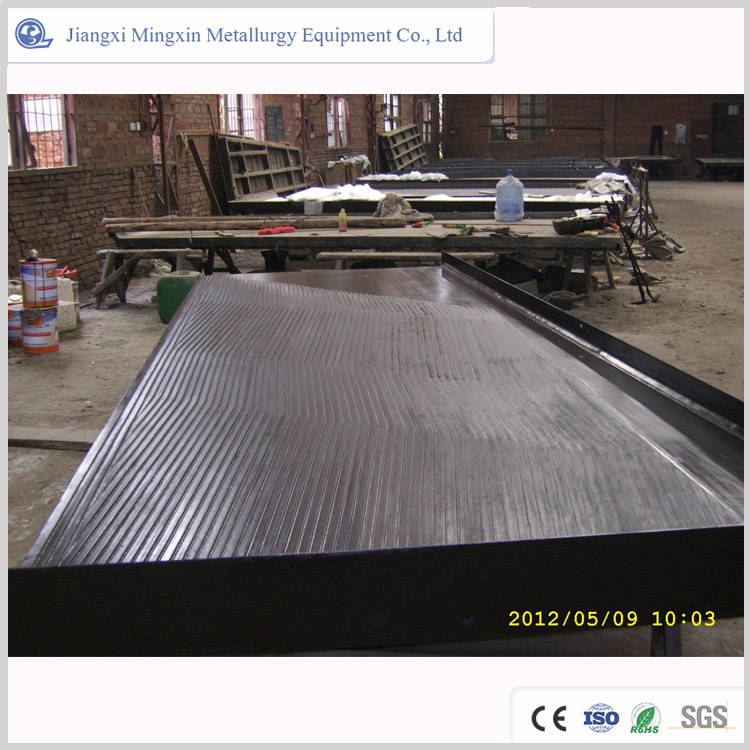

Gold Shaking Table is fundamentally low-volume machines utilized as the last step in the gold mining process. The shaking table is a thin film, shear stream process hardware, that isolates ...
Product Overview
Gold shaking tables also known as gold shakers, or gold separation tables, is a fine gold recovery equipment common in the gold shaker wash plant, alluvial gold mining plant to separate concentrates, medium concentrates, and tailings according to material density, and grain size.
Gold mining shaker table can not only be used as an independent beneficiation machine, but it often works with jig machines, centrifugal concentrators, sluice boxes, flotation equipment, magnetic drum separators, spiral classifiers, and other ore dressing equipment.
Type
Table surface materials Glass-reinforced plastics (glass fiber reinforced polyester resin) and aluminum alloy (laboratory use).
Gold shaker table for saleSpecification
| Deck Type | Unit | Course Sand | Fine Sand | Slime Deck | Three Different Kinds of Decks Are Available | |||
| Beneficiation Area | m2 | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | |
| Deck Size | Length | mm | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 |
| Transmission End Width | mm | 1855 | 1855 | 1855 | 1320 | 1050 | 500 | |
| Concentrate End Width | mm | 1546 | 1546 | 1546 | 1100 | 850 | 430 | |
| Maximum Feeding Size | mm | 2 | 0.5 | 0.15 | 0.1-2 | 0.074-2 | 0.074-2 | |
| Process Capacity | T/H | 1.5-2 | 0.8-1.5 | 0.5-0.8 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 | |
| Feeding Density | % | 25-30 | 20-25 | 15-25 | 10-30 | |||
| Stroke | mm | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | |
| Frequency | f | 45-48 | 18-53 | 50-57 | 210-320 | 250-450 | 280-460 | |
| Water Added | T/D, T/H | 80-150 T/D | 30-60 T/D | 10-17 T/D | 0.3-1.5 T/H | 0.2-1 T/H | 0.1-0.5 T/H | |
| Transverse Slope of Deck | ° | 2° 30-4° 30 | 1° 30-3° 30 | 1° -2° | 0 -10° | 0 -8° | 0 -10° | |
| Longitudinal Slope of Deck | ° | 1.4 | 1.4 | 0.92 | —— | —— | —— | |
| Cross-section Shape of Deck | Rectangular | Sawtooth | Triangle | Available rectangular, sawtooth, triangle | ||||
| Motor Power | KW | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
